Superwall
 |
Self -supporting

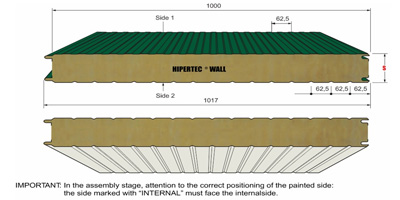

polyurethane insulation metal panel system, insulated with rigid PUR/PIR foam, with a concealed-fixing method for high quality industrial and commercial buildings, where good aesthetics are paramount. The special double labyrinth joint of this panel, provides mechanical resistance and insulation superior to any other wall panel product of this kind, the panel external micro-V increases the aesthetic appeal of this panel, which can be orientated both vertically and horizontally as required. Because of the particular shape of the joint, blind fastening are applied to the V-cut on the male edge of the outside sheet. Two screws with center distance of 30 mm should be used for each panel and each stud. Outside walls are made mounting such panels one next to the other. |
MAJOR PRODUCT TECHNICAL APPROVAL
Zulassung Dibt Z - 10.4 - 169.
Make sure that the load capacity of the two panels is correct using for the calculation the
capacity values indicated for the SUPERWALLÒ ML panel.
Table of safe spans
Values
guaranteed with steel sheets, thickness 0.6 + 0.5 mm. Spans l in
meters, as a function of a uniformly distributed load p (daN/m2), have
been
obtained from experimental data and calculated to provide a
deflection limit: f £ l/200 of the span and a minimum safety coefficient
that complies with
the UEAtc standards for insulated panels, which have
been established and are implemented by primary European Certifying
Organizations. For safe
spans relevant to relative loads, please contact
us.
